USB3.0 CAMERA CMOS

Industrial Camera with USB3.0 Interface.
You can save images without compression.

※Following squire sign showing the camera model has color, monochrome or NIR version.
    color＝color,   monochrome＝monochrome,   NIR＝NIR　
    You can see Spectral Sensitivity Characteristics of each model by clicking those squire sign.

ARTCAM-USB3-T2 Series 商品説明書ダウンロード

ARTCAMカメラ
カメラ背面

【Size】※Lens and tripod mount excluded
・Dimensions：50(W)x47(H)x42.7(D)mm
・Weight：150g



Board Type Camera Available!
OPカメラOPカメラ
Please contact us for details.

【Accessories】Standard viewer software, Device driver, USB cable, SDK（Software Development Kit）
【Common Specifications】Lens mount…C mount, Power Supply…DC5V
【Options】2Dimension measurement software, Recording Software

Model
Type
pixels

Sensor

Manufacturer

Shutter

Type

Optical

Format
Active Pixels
(H)×(V)
Active Imager Size
(mm) (H)×(V)
Pixel Size
(μm) (H)×(V)

Frame

Rate

Shutter

Speed(Sec)
ARTCAM-1400MI-USB3-T2
カラー  モノクロ  NIR
14M
ON
Semiconductor

Electronic

Rolling

Shutter
1/2.3"
4608×3288
6.45×4.60
1.4×1.4
6fps
1/10000〜2
ARTCAM-1000MI-USB3-T2※
カラー  モノクロ  NIR
10M
1/2.3"
3856×2764
6.41×4.59
1.67×1.67
6fps
ARTCAM-500MI-USB3-T2
カラー  モノクロ  NIR
5M
1/2.5"
2592×1944
5.70×4.28
2.2×2.2
13.9fps
※ 1000MI-BW-USB3-T2(Monochrome) is available depends on order

ARTCAM-178IMX-USB3-T2 商品説明書

ARTCAMカメラ

【Size】※Lens and tripod mount excluded
・Dimentions：71.6(W)x61.5(H)x43(D)mm
・Weight：200g


Board Type Camera Available!
OPカメラOPカメラ
Please contact us for details.

【Accessories】Standard viewer software, Device driver, USB cable, SDK（Software Development Kit）
【Common Spec】Lens…C mount、Power Supply…DC5V
【Options】C mount Lens, 2Dimension measurement software, Recording Software

Model
Type
pixels

Sensor

Manufacturer

Shutter

Type

Optical

Format
Active Pixels
(H)×(V)
Active Imager Size
(mm) (H)×(V)
Pixel Size
(μm) (H)×(V)

Frame

Rate

Shutter

Speed(Sec)
ARTCAM-178IMX-USB3-T2
カラー  モノクロ  NIR
6M
SONY

Rolling

1/1.8"
3072×2048
7.43×4.99
2.4×2.4
50fps
1/10000〜1/1.633

ARTCAM-226IMX-USB3-T2 / 250IMX-USB3-T2 / 252IMX-USB3-T2 /
265IMX-USB3-T2 / 174IMX-USB3-T2
商品説明書(226IMX) 商品説明書(250IMX) 商品説明書(264IMX) 商品説明書(265IMX) 商品説明書(174IMX)

ARTCAMカメラ

【Size】※Lens and tripod mount excluded
・Dimentions：50(W)x47(H)x42.7(D)mm
・Weight：130g


【Accessories】Standard viewer software, Device driver, USB cable, SDK（Software Development Kit）
【Common Specifications】Lens mount…C mount, Power Supply…DC5V
【Options】C mount Lens, 2Dimension measurement software, Recording Software

Model
Type
pixels

Sensor

Manufacturer

Shutter

Type

Optical

Format
Active Pixels
(H)×(V)
Active Imager Size
(mm) (H)×(V)
Pixel Size
(μm) (H)×(V)

Frame

Rate

Shutter

Speed(Sec)

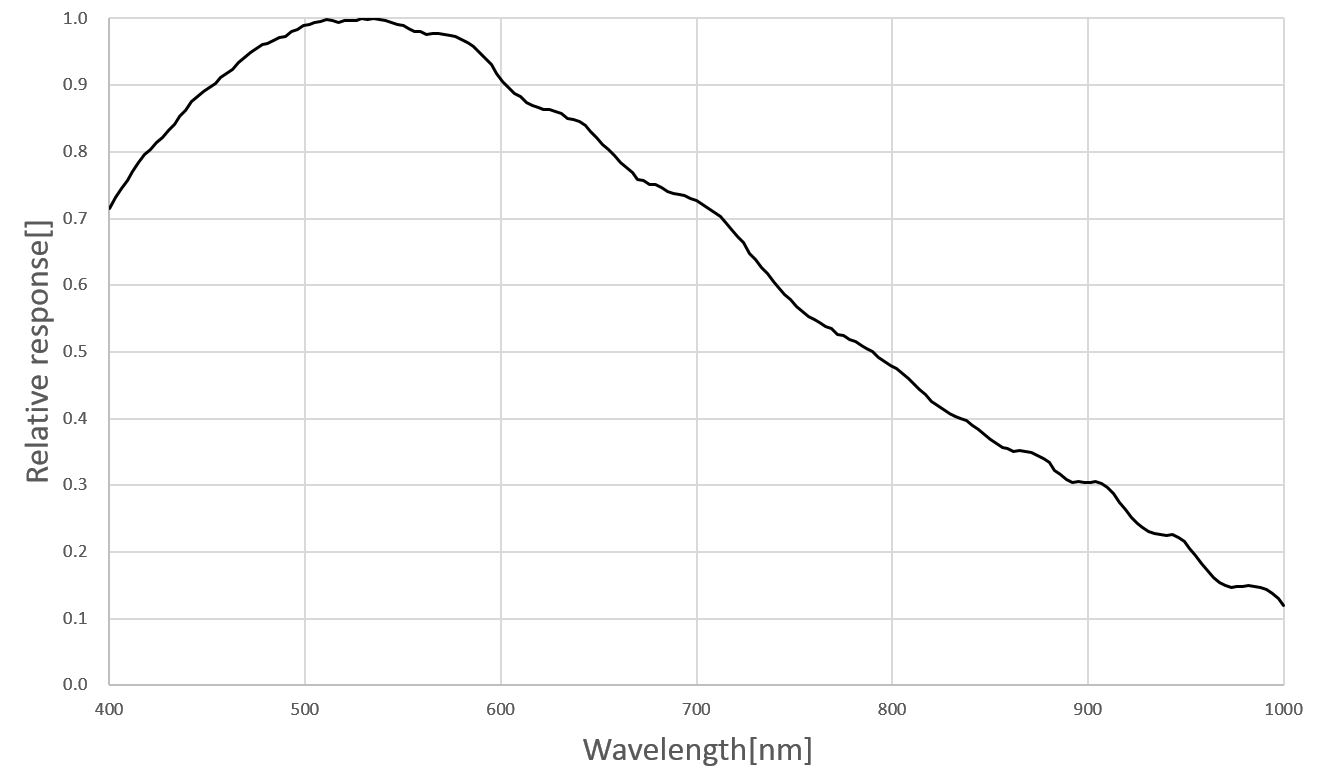

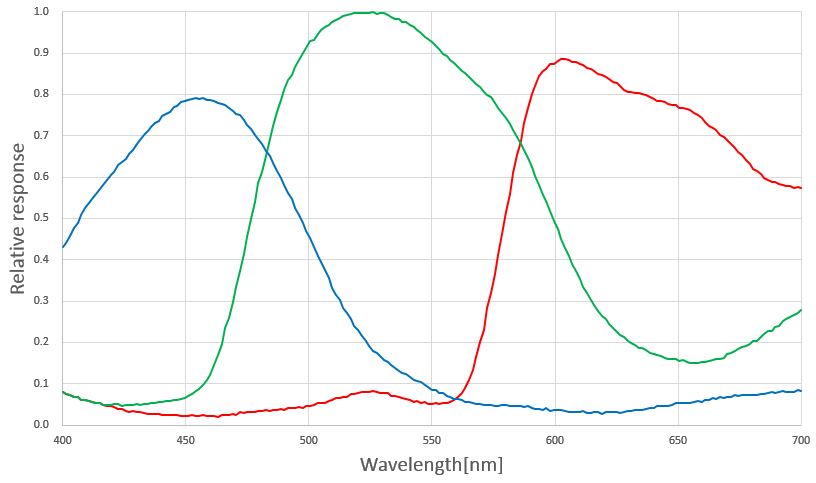

ARTCAM-226IMX-USB3-T2
カラー  モノクロ  NIR
12M
SONY

Rolling

1/1.7"
4072×3046
7.53×5.63
1.85×1.85
27.9fps
1/10000〜0.0352
ARTCAM-250IMX-USB3-T2
カラー  モノクロ  NIR
5M

Global

2/3"
2464×2056
8.5×7.09
3.45×3.45
59fps
1/10000〜3.28
ARTCAM-252IMX-USB3-T2
カラー  モノクロ  NIR
3M
1/1.8"
2048×1536
7.12×5.32
3.45×3.45
98.3fps
1/10000〜3
ARTCAM-264IMX-USB3-T2
カラー  モノクロ  NIR
5M
2/3"
2464×2056
8.5×7.09
3.45×3.45
36fps
1/10000〜0.7
ARTCAM-265IMX-USB3-T2
カラー  モノクロ  NIR
3M
1/1.8"
2048×1536
7.12×5.32
3.45×3.45
56fps
1/10000〜1

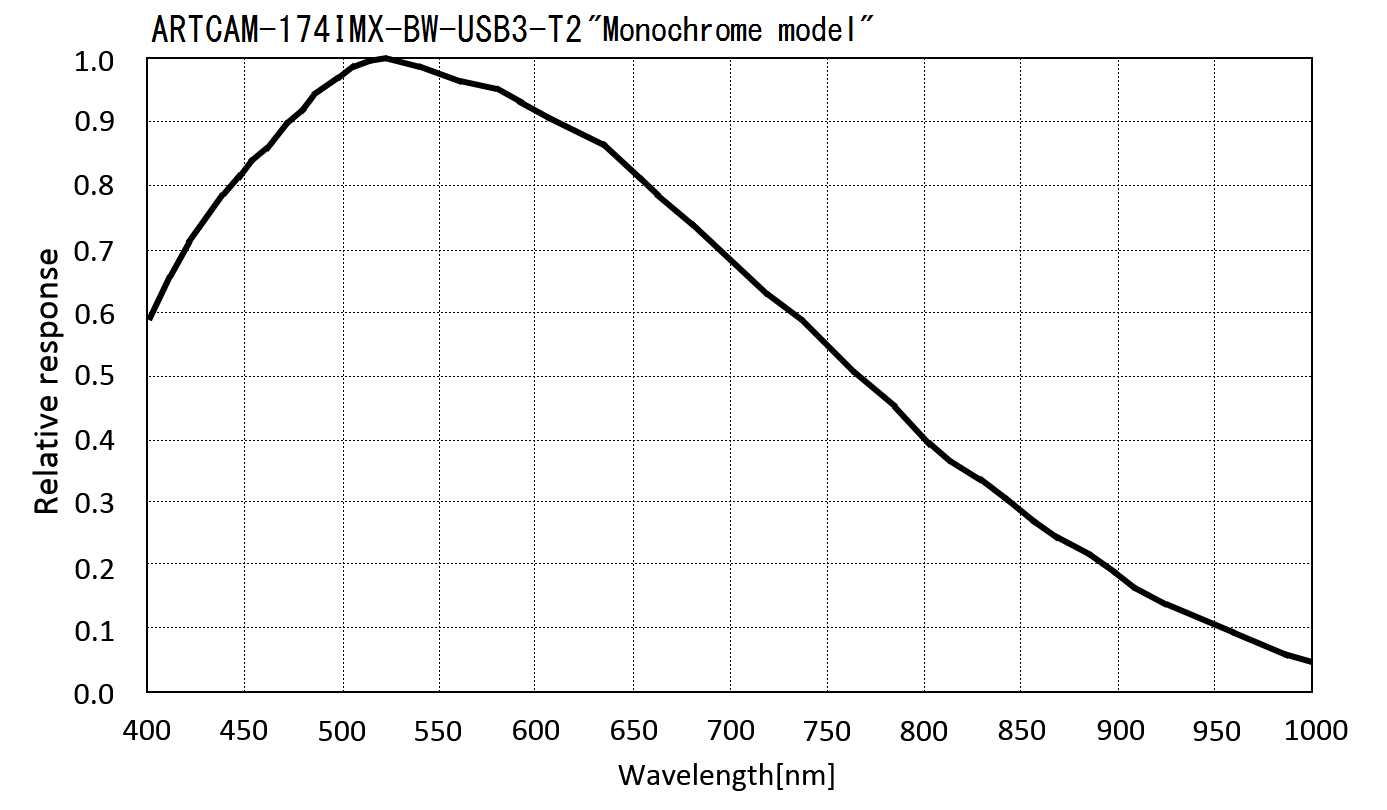

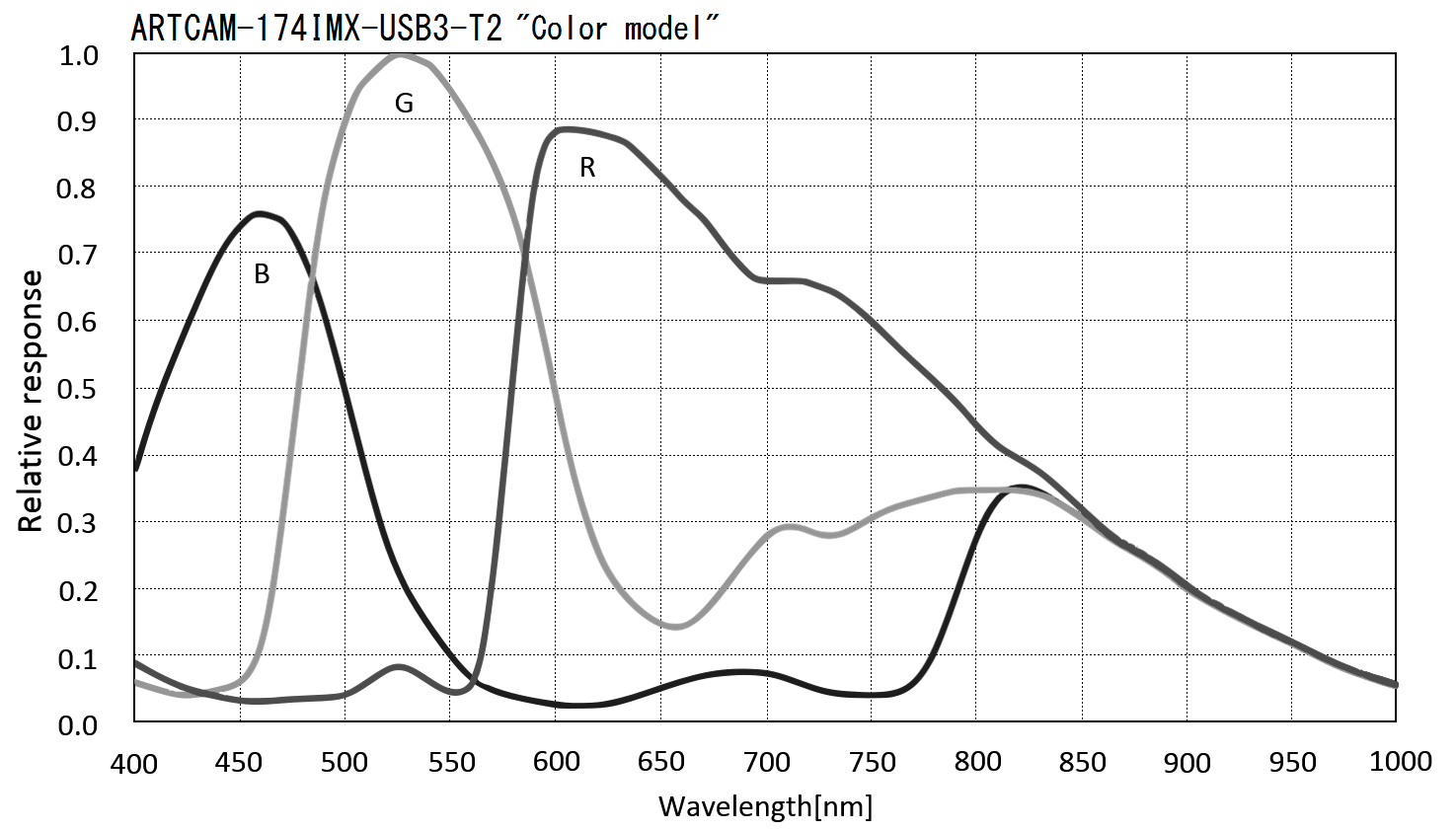

ARTCAM-174IMX-USB3-T2
カラー  モノクロ  NIR
2.3M
1/1.2"
1920×1200
11.25×7.03
5.86×5.86
86fps
1/10000〜1/25.19
