USB2.0 CMOS NIR CAMERA

カラー/モノクロ 近赤外線カメラ 超小型カメラ



  Jump to USB2.0 InGaAs Camera   Jump to InGaAs/GaAsSb Camera



ARTCAM-XQE-WOM Series 商品説明書ダウンロード

Spectral Sensitivity…400〜1,200nm
ARTCAM-130XQE-WOM

【Size】
・Dimensions : 50(W)x47(H)x41.7(D)mm
・Weight : 110g



【Accessories】Standard viewer software, Device driver, USB cable, SDK(Software Development Kit)
【Specifications】Lens…C mount, Power Supply…supplied from USB port

Model

Spectral Sensitivity

Characteristics

Sensor Type

Sensor

Manufacturer

Shutter

Type

Spectral

Sensitivity(nm)

Active Pixels
(H)×(V)
Active Imager Size
(mm) (H)×(V)
Pixel Size
(μm) (H)×(V)

Frame

Rate

ARTCAM-130XQE-WOM
1.3M
CMOS
SiOnyx
Rolling
400〜1200
1280×1024
12.8×10.2
10×10
27.7fps



ARTCAM-130HP-WOM 商品説明書ダウンロード Catalog

Spectral Sensitivity…380〜1,000nm

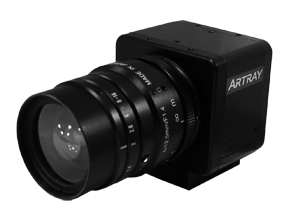

ARTCAM-130HP-WOM

【Size】
・Dimensions:50(W)x47(H)x41.7(D)mm
・Weight:110g



Board Type Camera Available!
OPカメラOPカメラ
Please contact us for details.

【Accessories】Standard viewer software, Device driver, USB cable, SDK(Software Development Kit)
【Specifications】Lens…C mount, Power Supply…supplied from USB port
【Options】2Dimension measurement software, Recording Software

Model

Spectral Sensitivity

Characteristics

Sensor Type

Sensor

Manufacturer

Shutter

Type

Spectral

Sensitivity(nm)

Active Pixels
(H)×(V)
Active Imager Size
(mm) (H)×(V)
Pixel Size
(μm) (H)×(V)

Frame

Rate

ARTCAM-130HP-WOM
ボタン
1.3M
CMOS
HAMAMATSU Photonics
Global
380〜1000
1280×1024
9.427×7.578
7.4×7.4
8.0fps

WOM(With on-board memory)Series 商品説明書ダウンロード

Spectral Sensitivity…750〜950nm
ARTCAMカメラ

【Size】
・Dimensions:
50(W)x47(H)x49.7(D)mm
(1000MI-NIR-WOM only)
50(W)x47(H)x41.7(D)mm
(1000MI-NIR-WOM except)
・Weight:110g



Board Type Camera Available!
OPカメラOPカメラ
Please contact us for details.

【Accessories】Standard viewer software, Device driver, USB cable, SDK(Software Development Kit)
【Specifications】Lens…C mount、Supply…DC5V
【Options】2Dimension measurement software, Recording Software

Model

Spectral
Sensitivity

Characteristics

Sensor Type

Sensor

Manufacturer

Shutter

Type

Optical

Format

Active Pixels
(H)×(V)
Active Imager
Size (mm)
(H)×(V)
Pixel Size
(μm) (H)×(V)
Frame Rate

Shutter

Speed(Sec)

ARTCAM-1000MI-NIR-WOM※
ボタン
10M
CMOS
ON
Semiconductor
Rolling
1/2.3"
3856×2764
6.41×4.59
1.67×1.67
4.4fps
1/11678〜1.4
ARTCAM-500MI-NIR-WOM
ボタン
5M
1/2.5"
2592×1944
5.70×4.28
2.2×2.2
7.1fps
1/53452〜1.196
ARTCAM-130MI-NIR-WOM
ボタン
1.3M
1/2"
1280×1024
6.66×5.32
5.2×5.2
30fps
1/35928〜0.52
ARTCAM-036MI2-NIR-WOM
ボタン
0.36M
Global
1/3"
752×480
4.51×2.88
6.0×6.0
60fps
1/33149〜0.988
※ 1000MI-NIR-WOM is available depends on order quantity.
